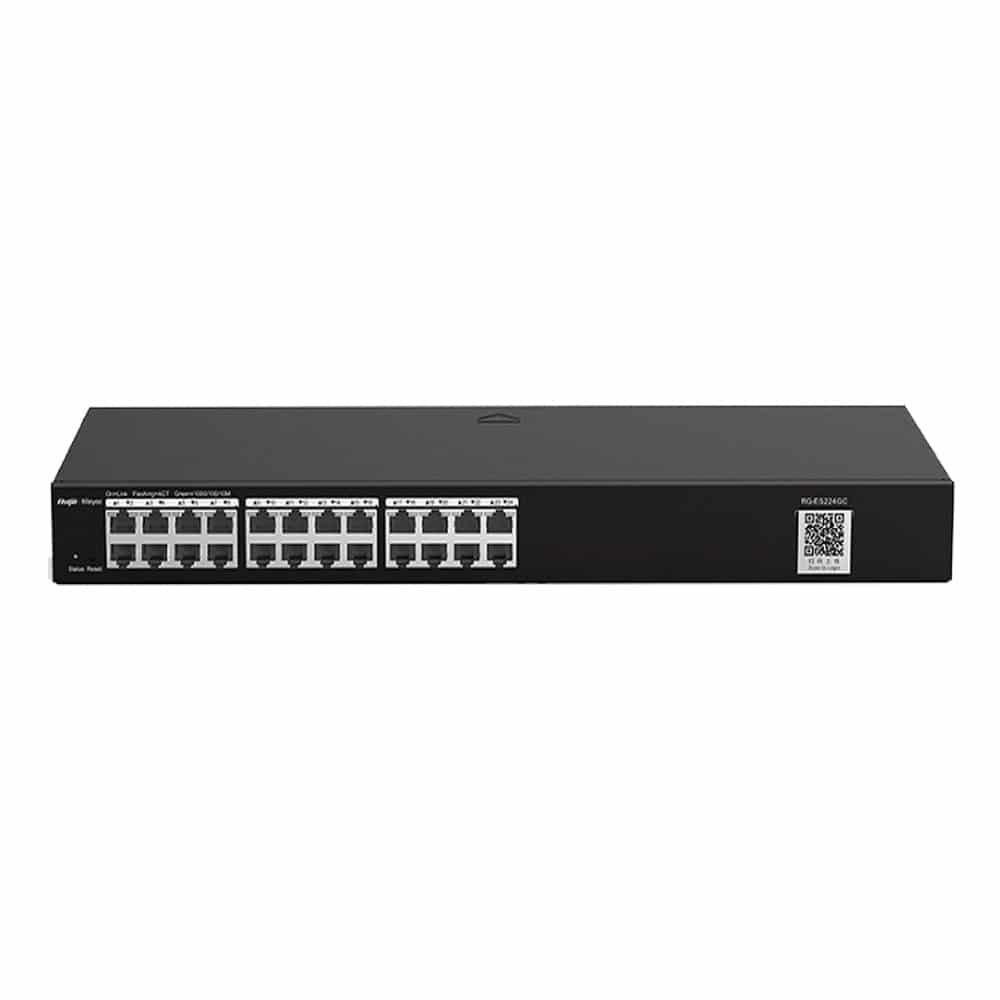

Reyee 24 Port Gigabit Cloud Managed Switch – RG-ES224GC
$485 ex GST
24-Port Gigabit Smart Switch, 24 Gigabit RJ45 Ports,19-inch Rack-mountable Steel Case. Switching capacity 48Gbps, Package forwarding rate 36Mpps
Datasheet
Ruijie-RG-ES200-Series-Cloud-Managed-POE-Switches-for-IP-Surveillance-Da…-3
Description
24-Port Gigabit Smart Switch, 24 Gigabit RJ45 Ports,19-inch Rack-mountable Steel Case. Switching capacity 48Gbps, Package forwarding rate 36Mpps
Key Features
- Auto-provisioning via Self-Organizing Network: ES2 Smart series switch realizes the industryleading auto-discovery and auto-networking features for gateways, switches and wireless
- Lifetime free Ruijie Cloud management: Remote fault alarm, one-click operation, loop prevention, real topology and maintenance on Ruijie Cloud App
- NVR/Camera Recognition
- Reboot the PoE Ports with remote one-click on Ruijie Cloud App
- Full Gigabit port: Meet the needs of 200M xDS/fiber access, high-speed wired connectivity
| Model Specifications | RG-ES224GC |
| HARDWARE SPECIFICATIONS | |
| Ports | 24 10/100/1000Base-T ports |
| Switching capacity | 48Gbps |
| Package forwarding rate | 36Mpps |
| Surge protection | Common mode: 6KV |
| Power consumption | <14W |
| Power supply | Built-in power supply |
| Dimensions (W x D x H) | 440x165x44mm |
| MTBF | >200K |
| OPERATING ENVIRONMENT | |
| Operating temperature | 0 to 50°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
| Software features | |
| MAC capacity | 8K |
| Static MAC address | 16 |
| VLAN | Support 802.1Q VLAN |
| Port management | Support port status display, port traffic statistics, port duplex / negotiation rate configuration, flow control configuration |
| Security | Support broadcast storm suppression, port speed limit, port isolation, DHCP Snooping |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 31 × 5 × 24 cm |
