November 1, 2018Wideband Cat 6 RJ45 Modular Data Mech Unshielded 568A/B (Pack of 20)
Part Number : MJU6WHRI-020pc
Pack of 20
Description

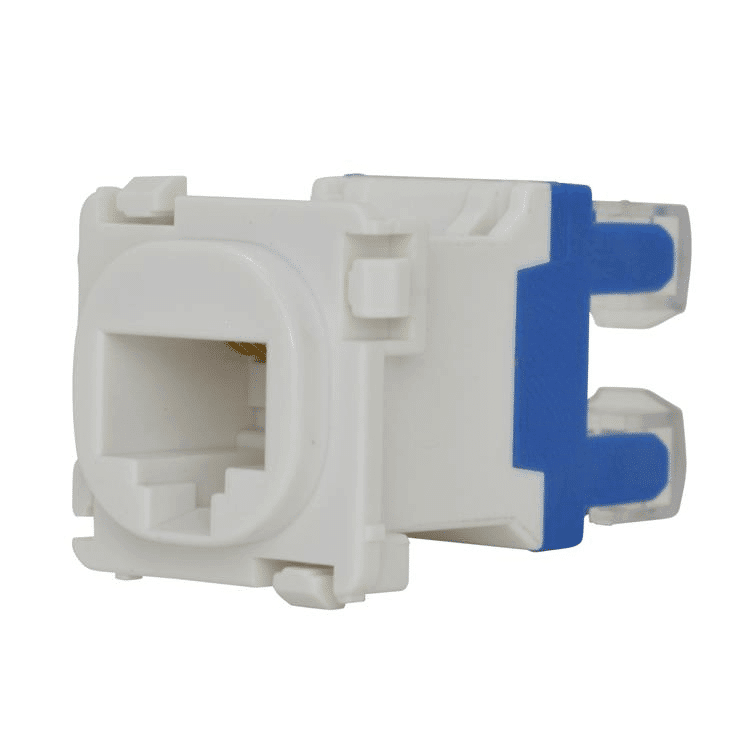

Australian Style Cat6 RJ45 Data Mech – Universal Termination (110/Krone Tool): 20 Pack
Our Cat6 Australian Style Jacks are designed to fit most standard Australian Standard Wall Plates, and are colour coded for both 568A and 568B standards. They can be terminated using a 110 or Krone Tool. These Cat6 22-26 AWG solid conductor jacks are designed for use with UTP network cable and are ideal for a broad range of Ethernet, Fast Ethernet Gigabit Ethernet network and IT applications. Clear wire retaining caps are supplied and can be used to provide additional cable strain relief. The outlets feature PCB technology which maintains low insertion loss, return loss and cross talk.
FEATURES

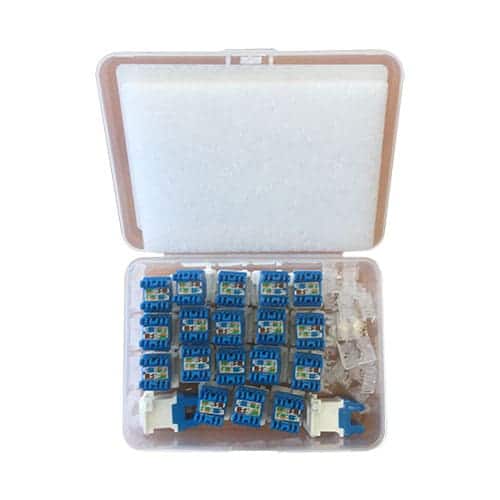

- Pack of 20 which includes 20 jacks and 20 clear retaining caps.
- These CAT 6 Keystone Jacks designed to fit most standard Australian Standard Wall Plates
- Cat6 keystone jacks can be terminated with both a Krone Tool and 110 Punch Down Tools

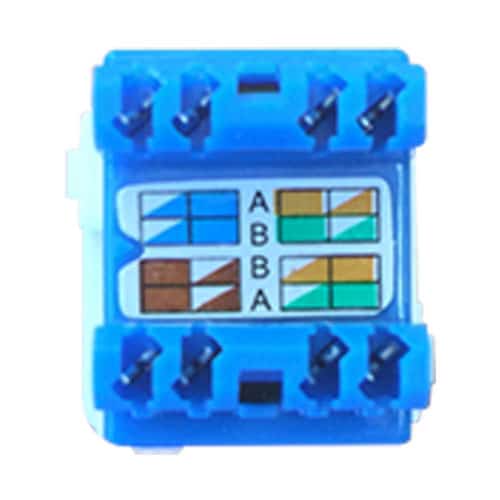

- Combined with both T568A & T568B colour coding
- No bezzle required
- Termination Retaining Cap keep the wires locked in place
- Designed for 22-26 AWG Solid Conductors
- Tested to AS/CA S008:2010 A1:2014
Construction
- Material: 50 micron gold plate contacts
- Colour: White face
Specifications
Dimensions | 35mm Height x 85mm Outer Diameter |
Dimensions | 23mm (W) x 23mm (H) x 55mm (D) |
Current Rating | 1.5A maximum |
Insulation Diameter (Wire) | 0.70 – 1.60mm |
Temperature Range | -40°C to 70°C |
Durability | 750 insertion cycles minimum |
Standards | Colour Coded to T568A and T568B standards. Tested to AS/CA S008:2010 A1:2014 |
Additional information
Weight | 2 kg |
---|---|
Dimensions | 15 × 10 × 15 cm |
